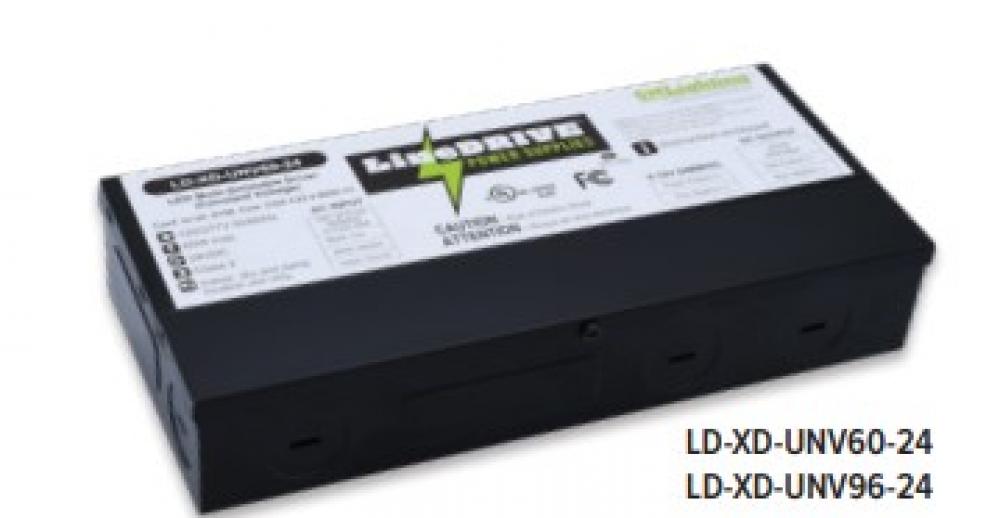

PRODUCT OVERVIEW
Multi-Dim LineDRIVE power supplies offer stable operation
with standard line voltage and low voltage dimmer controls
to make installation easy. Compatible with Triac, ELV, MLV
and 0-10V dimmers for a wide array of applications.
Dimming down to 1%.
FEATURES
• Output: Class 2, 24VDC, constant voltage
• Input: 120V / 277V
• Dimmable: Triac, ELV, MLV, 0-10V, PWM dimming
• Minimum dimming: 1%
• Stable operation, flicker-free dimming
• Compatible with typical phase dimmers and 0-10V controls
• Integrated wiring compartments with separate line voltage
and low voltage sections
• Line voltage compartment meets NEC code,
up to (3) 12 AWG conductors
• Over-current, over-voltage and over-temperature protection
